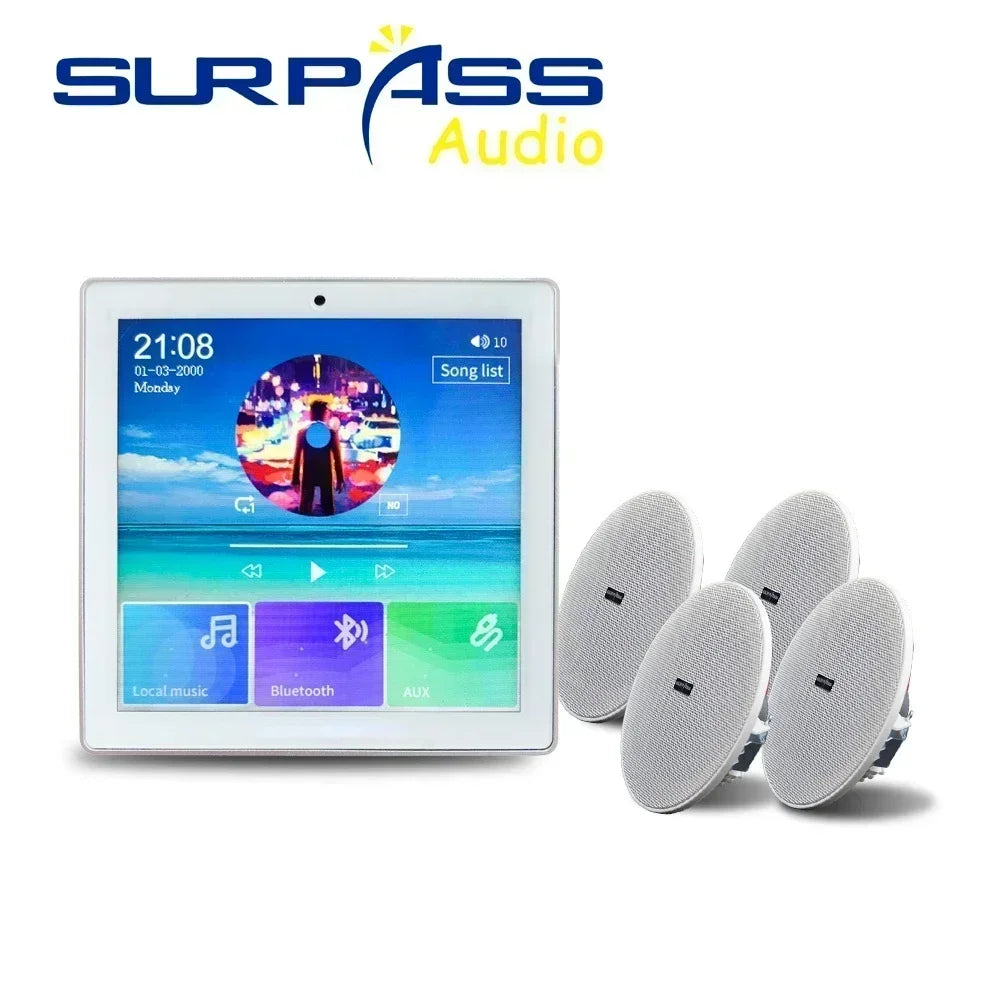

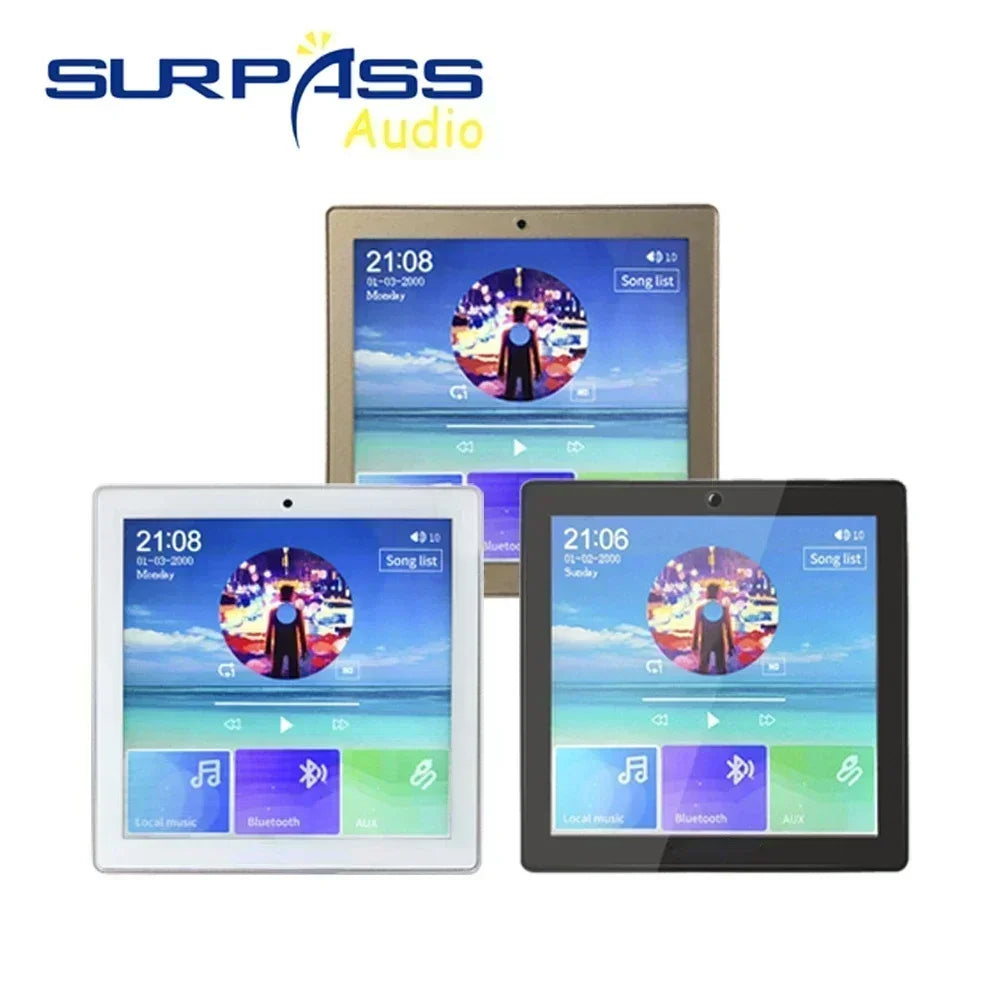

Bluetooth Wall Amplifier Smart Home Audio Mini Touch
Bluetooth Wall Amplifier Smart Home Audio Mini Touch
Couldn't load pickup availability
SPECIFICATIONS
Audio S/N: 98dB
Brand Name: SURPASS
Certification: CE
Channel: 4
Channels: 4
Color: Black, gold, white
Dimension: d160x56mm
FM RADIO: Built-in all-digital auto-tuning radio, 30 radio stations
Feature 1: Multi-room Music In Wall Amplifier
Feature 2: intelligent playing
Feature 3: Power Home Amplifier
Feature 4: Home Audio system,music system,Ceiling Speaker system
Feature 5: Bluetooth digital stereo amplifier, in wall amplifier
Frequency Response: 20Hz-20KHz
Function: support bluetooth,mini USB,TF card
High-concerned chemical: None
Impedance: 8ohm
Installation Cutout Size: d148mm
Material: plastic frame + iron mesh cover
Maximum Power Per Channel: 20W
Memory Card: up to 32G
Model Number: PW4425B+4CR410
Name: 4 Channel Wireless Bluetooth In Wall Amplifier
Net Weight: 0.42KG
Occasion: Home Theater, bathroom, living room, hotel, kitchen, office etc.
Origin: Mainland China
Output Impedance: 4-8Ohm
Output Power: RMS 4x20W
Package: Yes

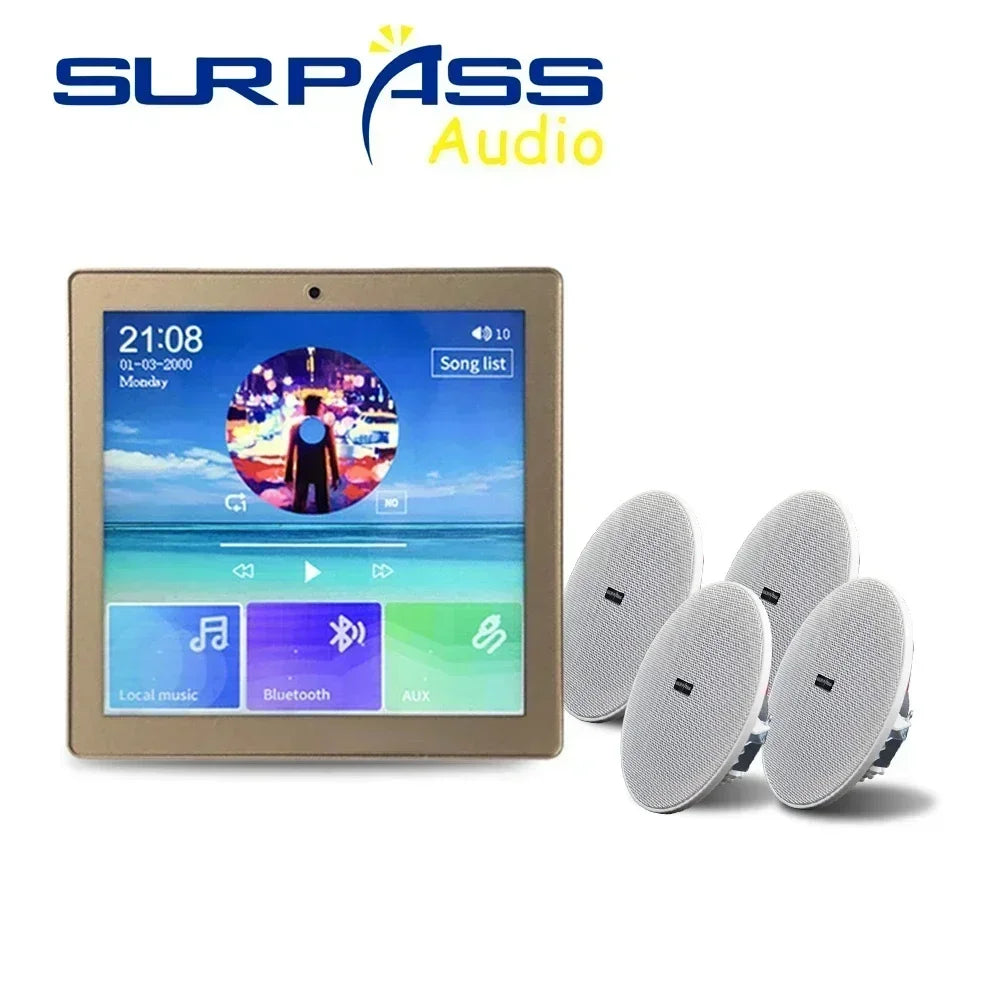

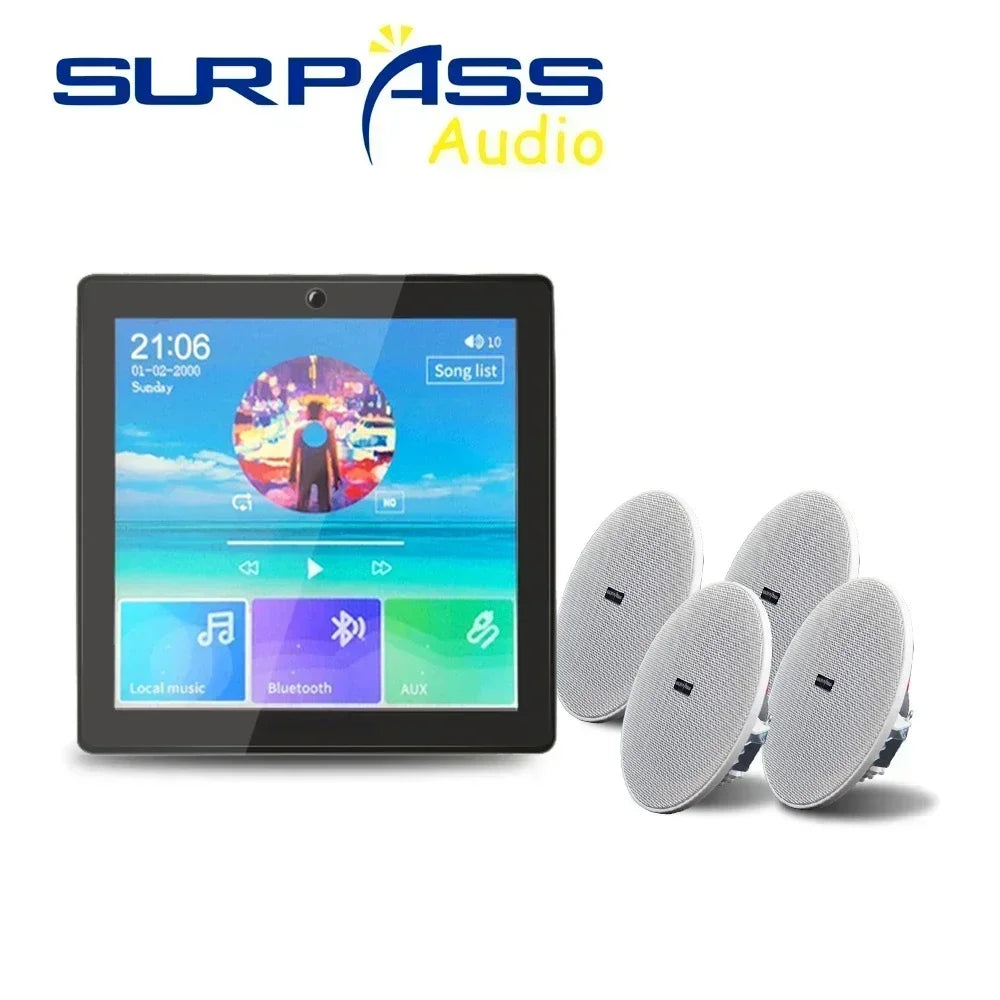

Package include: Home audio amplfier with 4pcs ceiling speakers
Power: 10W
Sensitivity (1W/1M): 89dB +-3dB
Size: 86*86*11mm
Speaker Frequency Response: 100Hz-16KHz
Speaker Unit: 4.5''x1
T.H.D.: 0.03%
Touch screen size: 4 inch
Type: Smart Home Audio

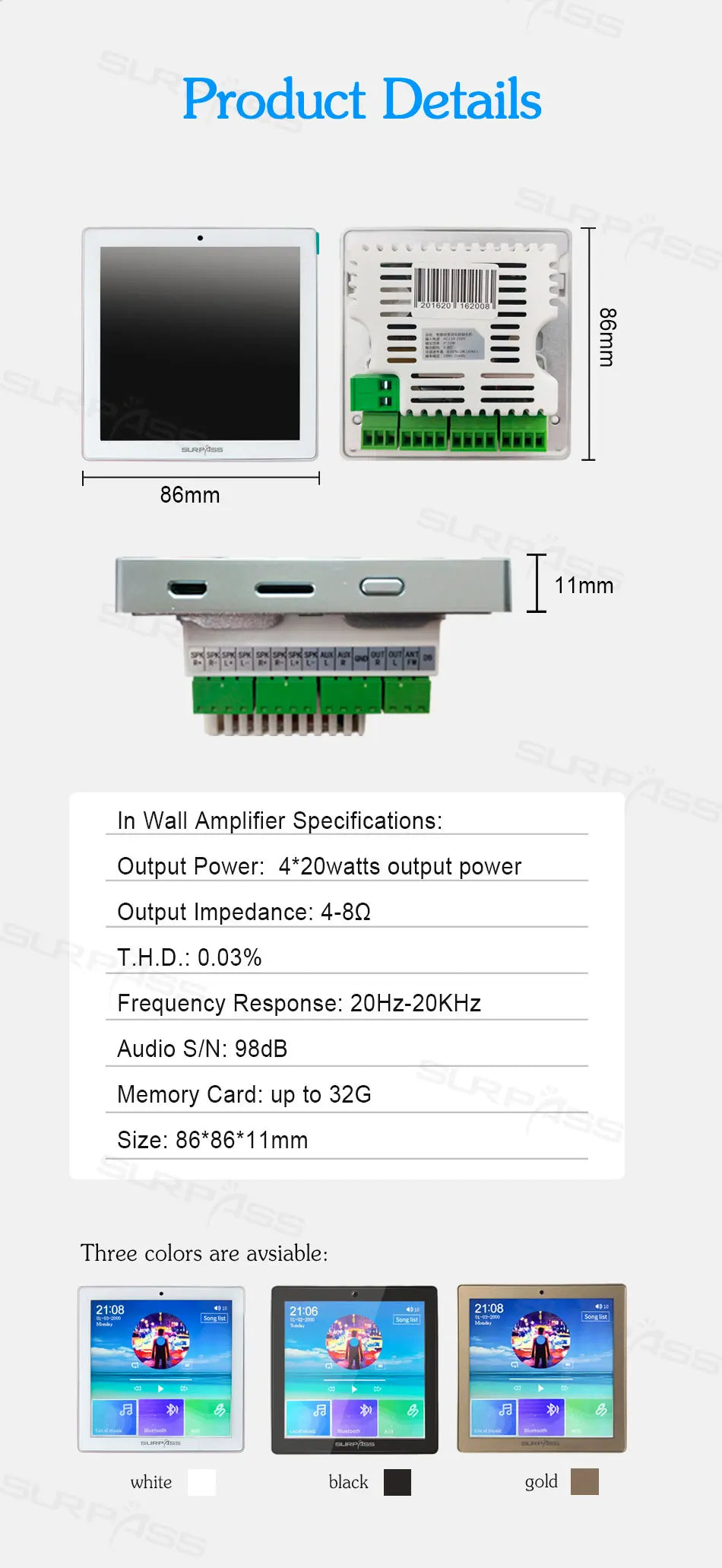

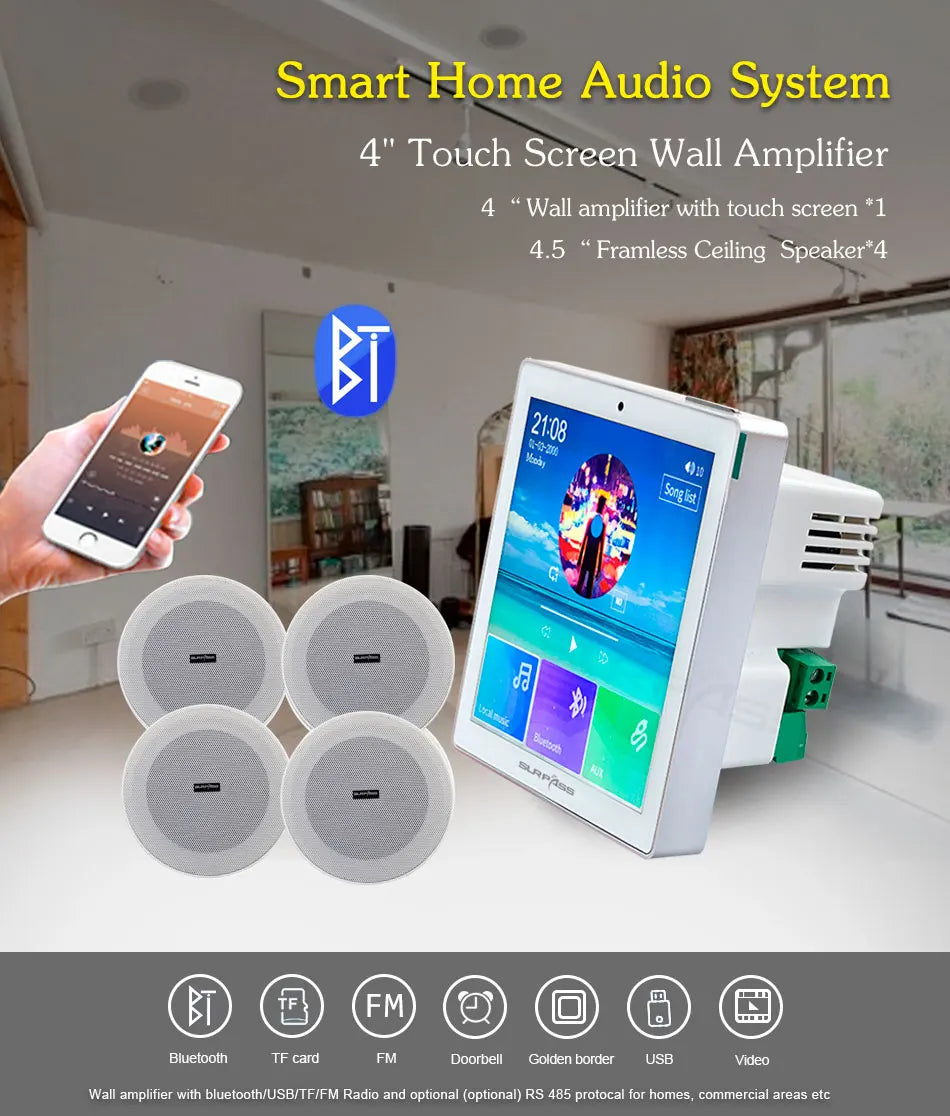

Bluetooth Wall Amplifier Smart Home Audio Mini Touch Screen 4*20W Stereo Sound Music Panel PA System Loudspeaker Ceiling Speaker
● Power: AC220V(50HZ) allow 110V-250V
● Main screen size: 4 inch HD screen
● Output Power: RMS 4x20W
● Output Impedance: 4-8Ω
● T.H.D.: 0.03%
● Frequency Response: 20Hz-20KHz
● Audio S/N: 98dB
● Expand TF card memory: 32G
● USB: 0TG USB function, 32G can be read
● Size: 86*86*11mm

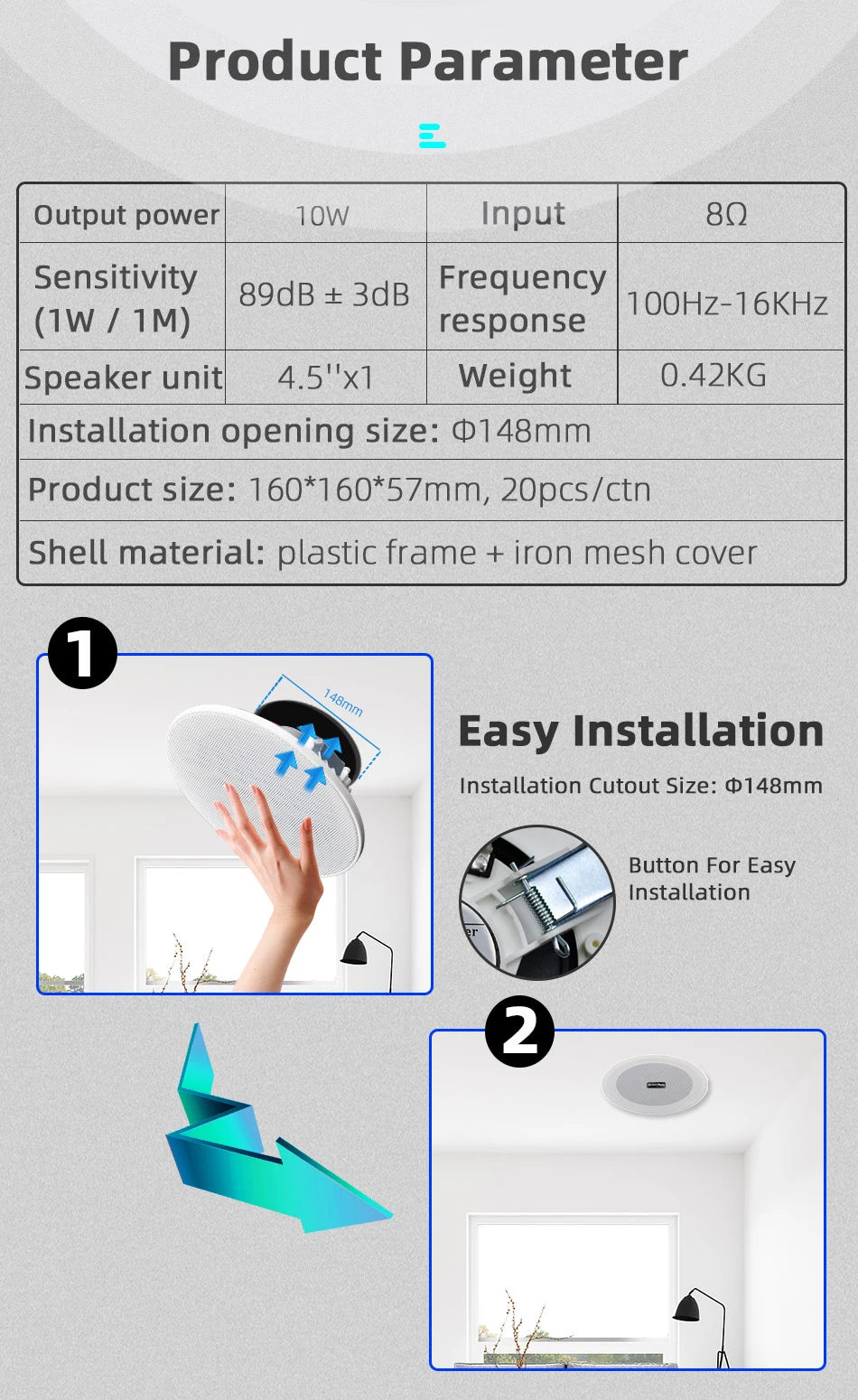

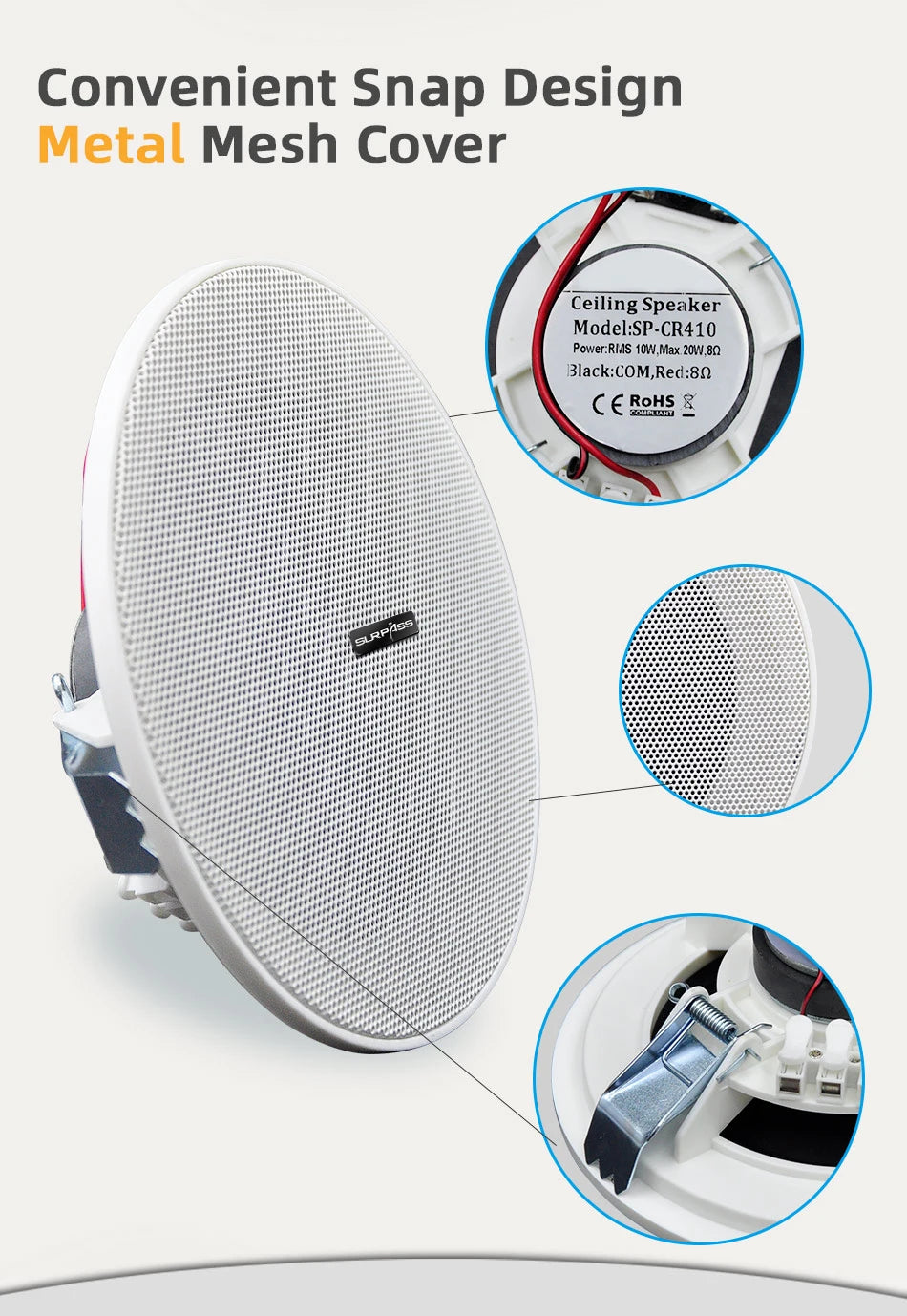

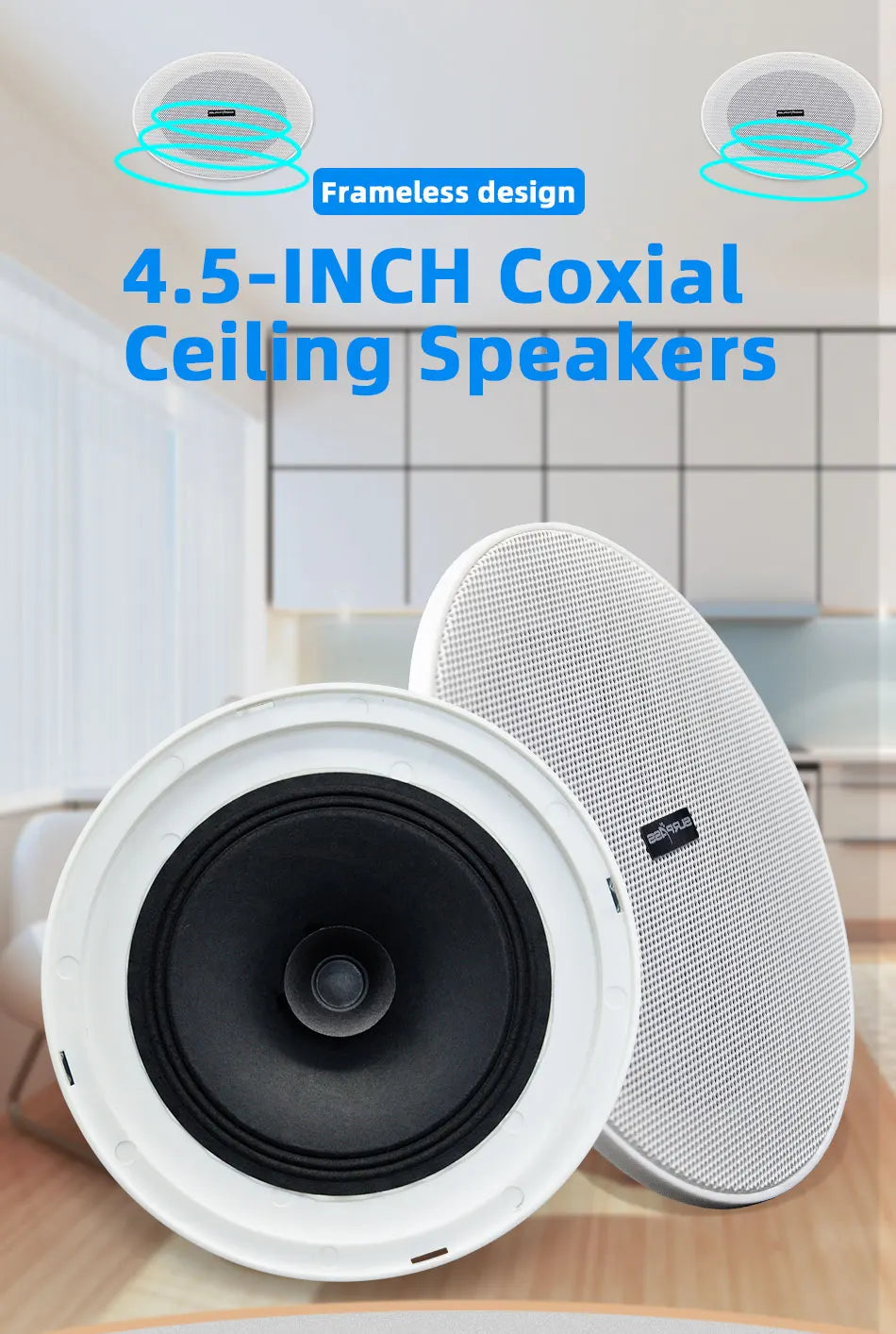

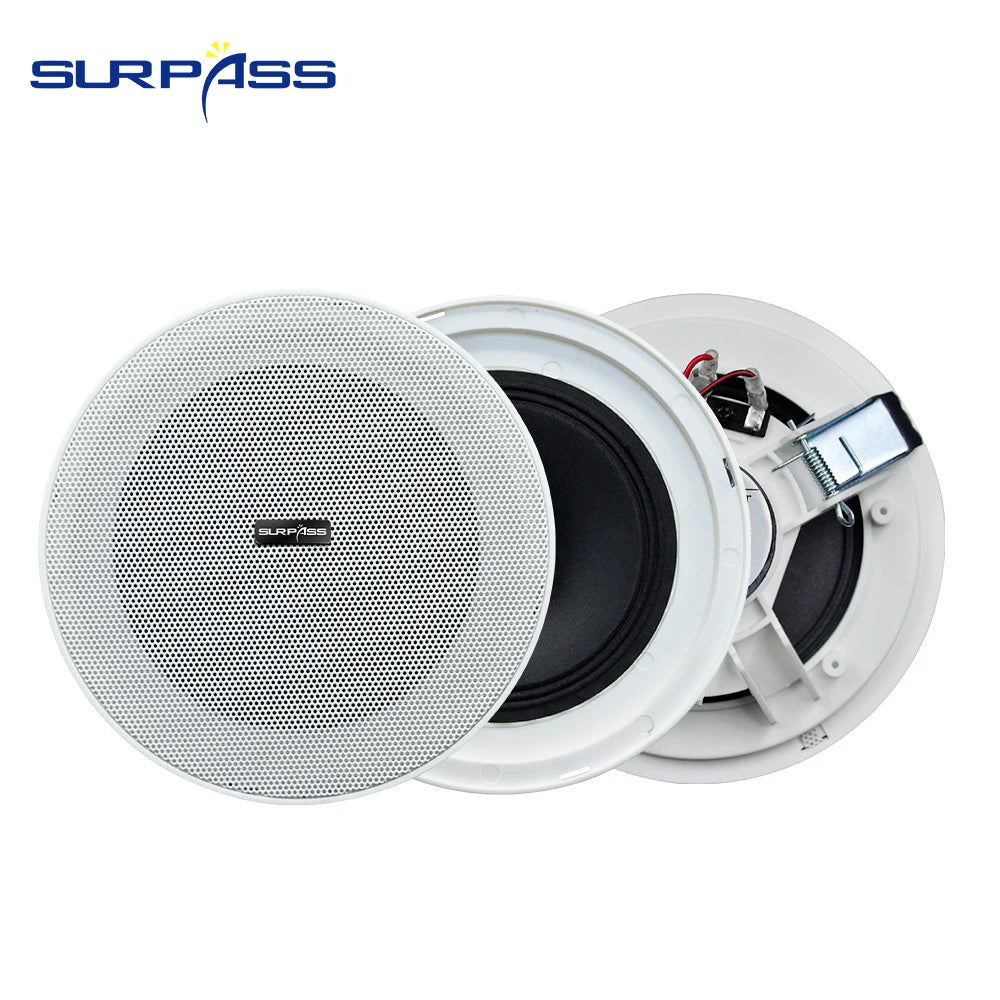

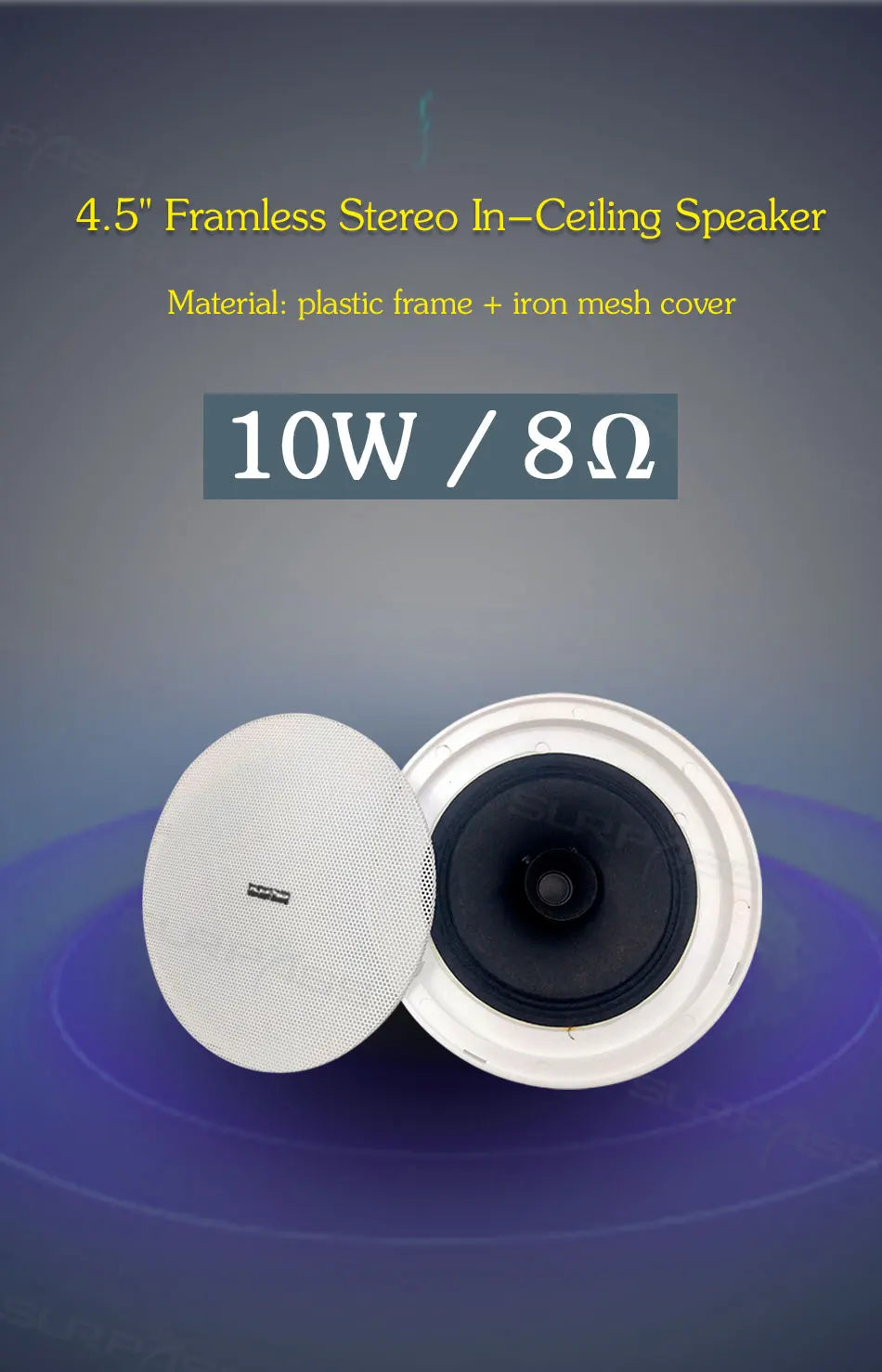

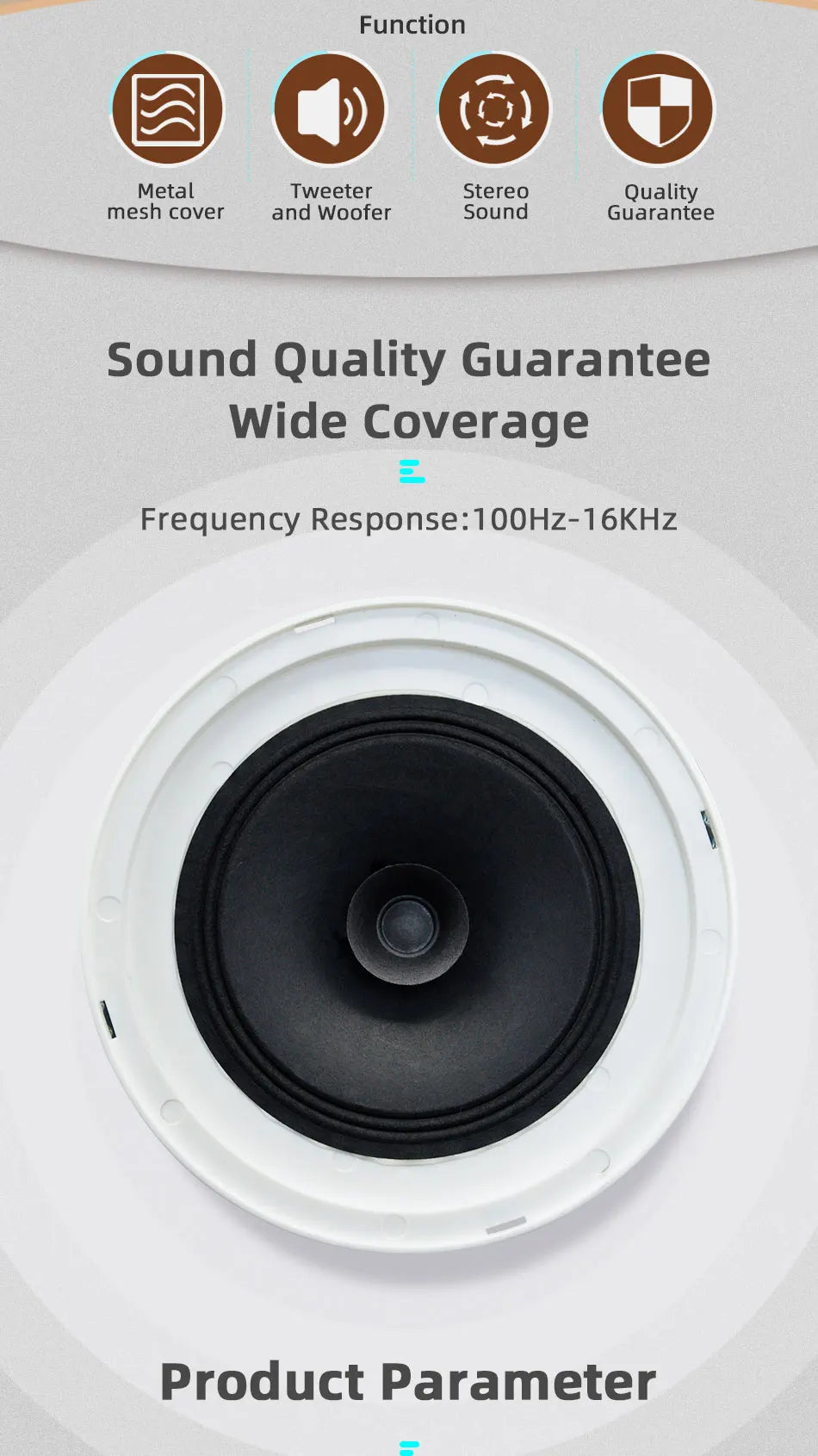

Framless Stereo In-Ceiling Speaker Mini Size Specifications:
● Power 10W
● Input: 8Ω
● Speaker Unit: 4.5''x1
● Sensitivity (1W/1M): 89dB ± 3dB
● Frequency Response: 100Hz-16KHz
● Material: plastic frame + iron mesh cover
● Installation Cutout Size: Φ148mm
● Dimension: Φ160x56mm
● Net Weight: 0.42KG

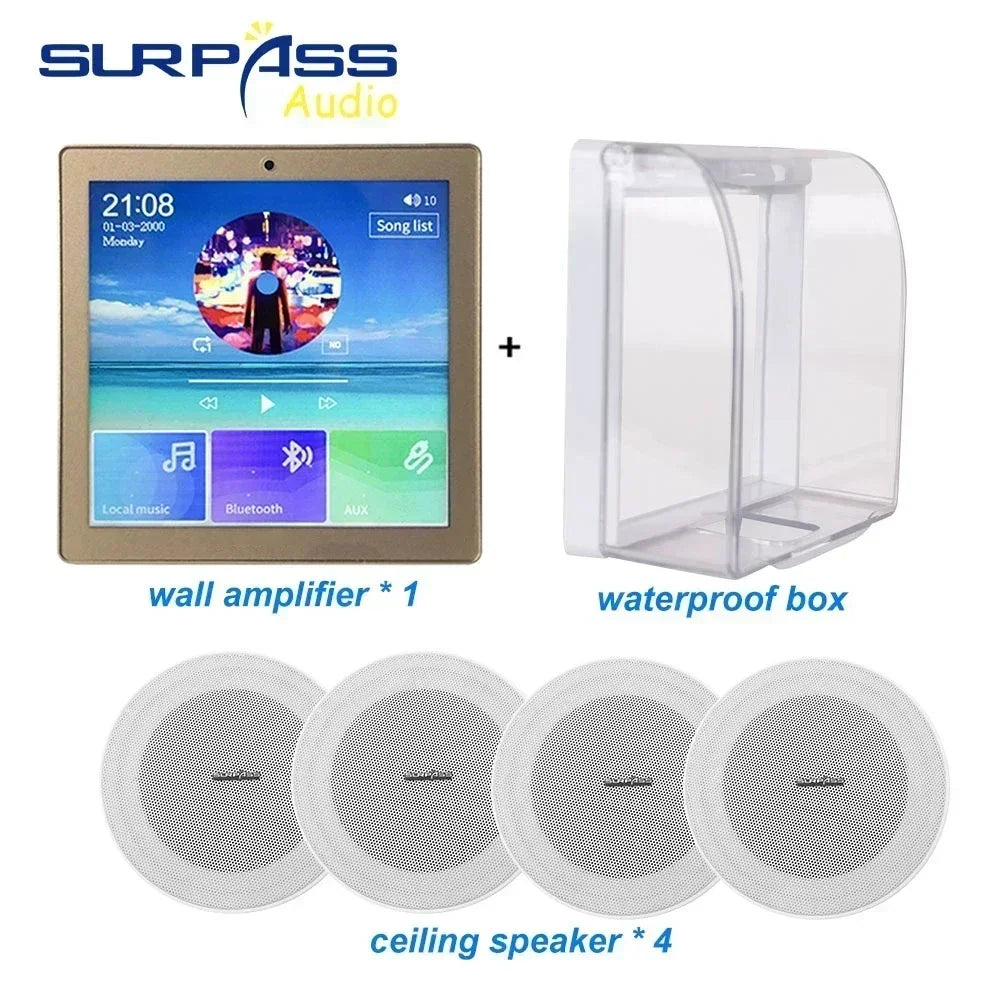

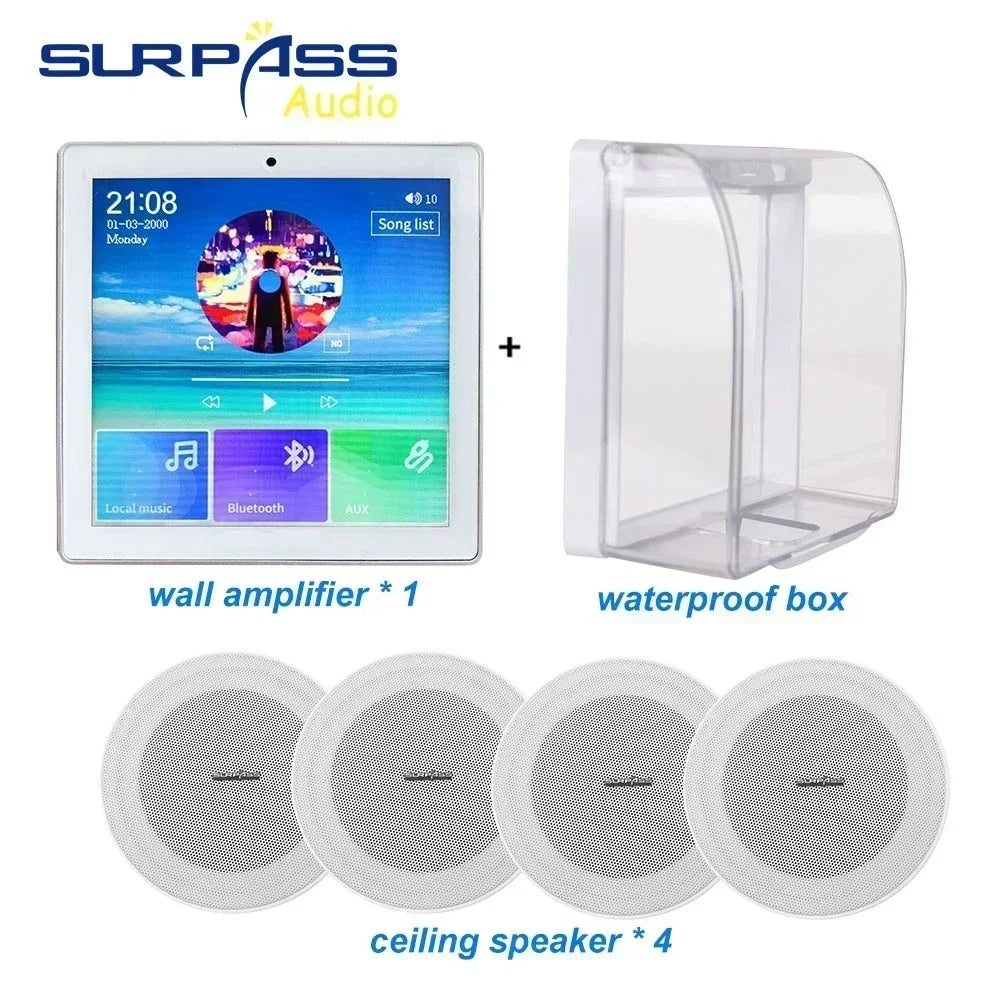

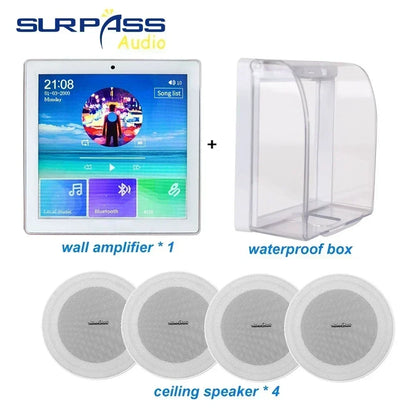

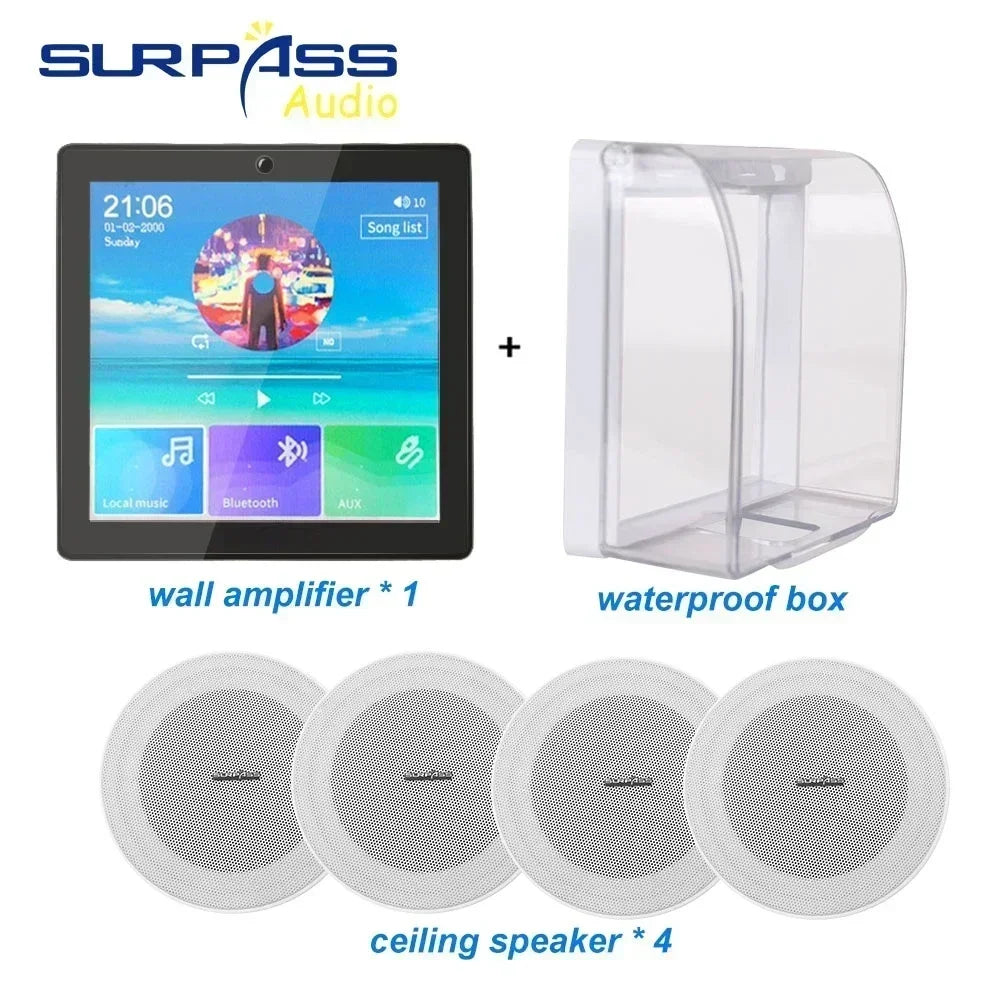

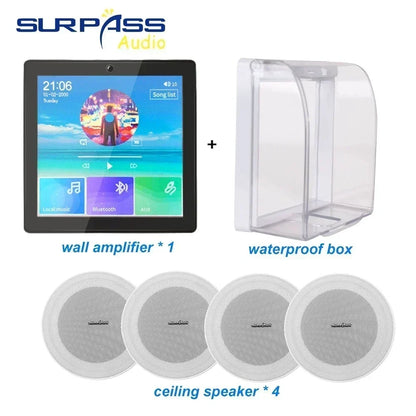

4 x ceiling speaker
1 x mounted box
1 x remote control
1 x bracket and screw
● Languages only support English and Chinese , please check before your purchase.
● For this device, speaker cable and power cable is not included.
① Use exceed 150-core pure copper speaker cable to connect speakers. Click to get:
200 core https://www.aliexpress.com/item/4000938426917.html
100 core https://www.aliexpress.com/item/1005001859469936.html
② Use power cable cord as the amplifier request (two cord).
● If there is any questions about the product or you need our technical support, please contact us.
● Video Playlist: https://youtube.com/playlist?list=PLo58qiwgS__woxhjGV9BWnr_wl9zyXfqI
Connection Guide https://youtu.be/G7mWynbcC3Q
1 How to connect antenna with the wall amplifier https://youtu.be/YRYsBwAUYhw
2 How to use FM function 2 https://youtu.be/GHbV33zwiwY
3 How to connect with phone via Bluetooth https://youtu.be/0QuwVKs4dHQ
4 How the wall amplifier controls and be controlled by the phone https://youtu.be/cEZJtBWBu8I
1. Timed message: set the time to automatically play the message content
2. Support power on automatically play songs
3. Power-off memory function: remember the state played before the last shutdown
4. Sound function: support ordinary, rock, classical, jazz, pop and other sound effects
5. Support trigger doorbell function, DB+GND
6. Support linkage trigger to play music, GND+ trigger playback
7. Support linkage triggering boot, GND+ trigger playback, expenditure trigger shutdown, GND+ timing output
8. Supports timing output level signal linkage with other devices, GND+ timing output
9. Time switch machine, custom timing boot song

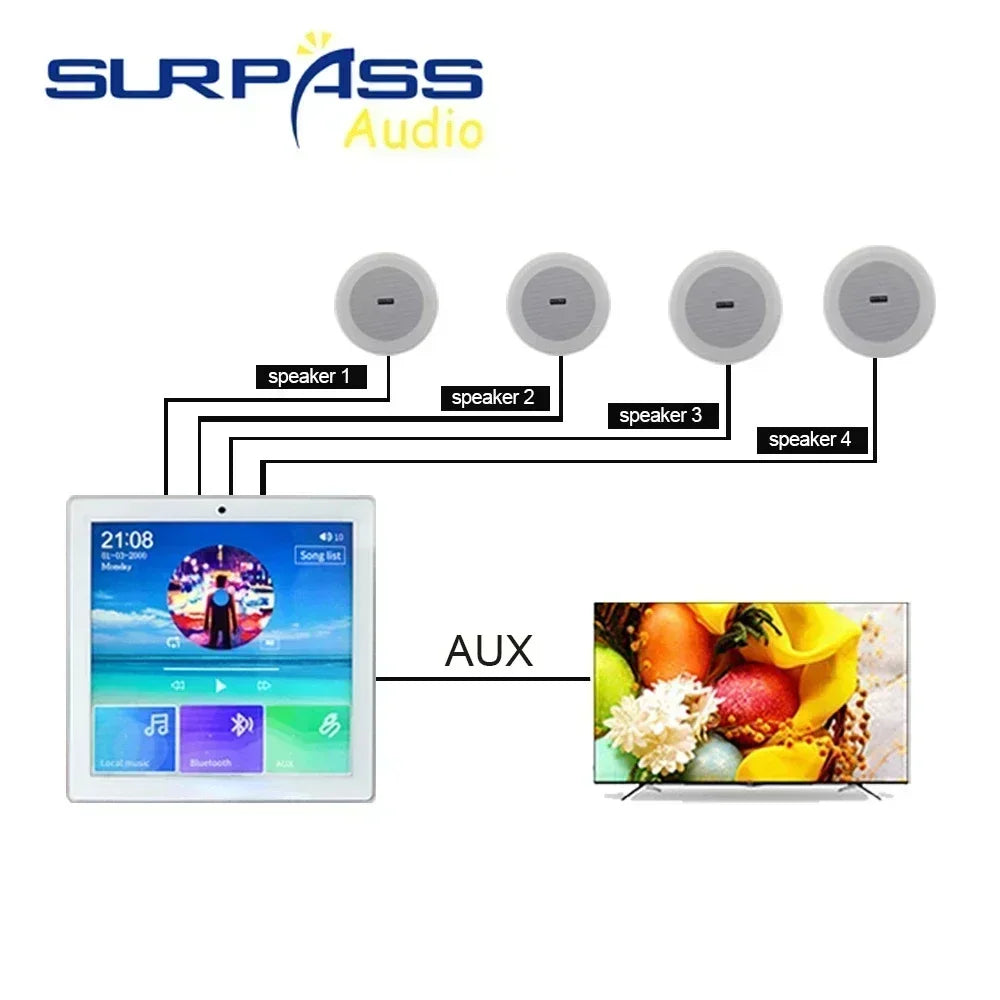

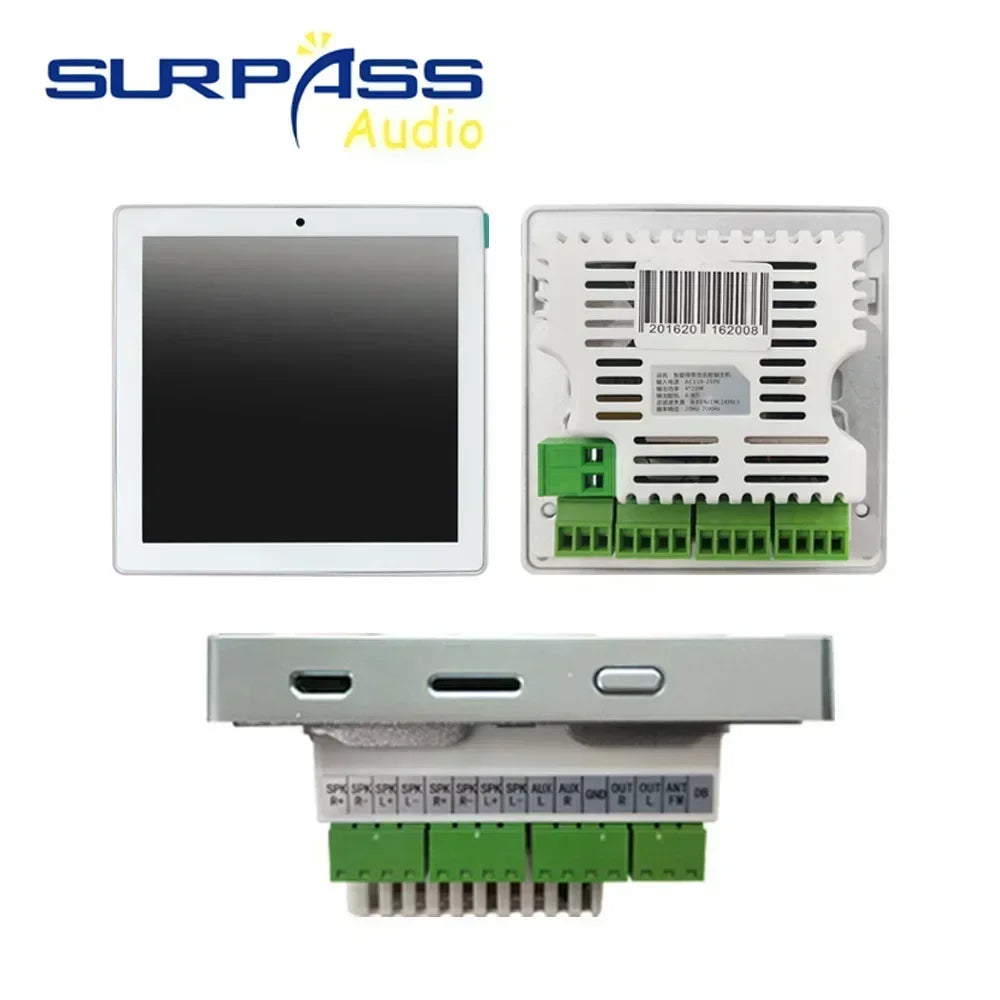

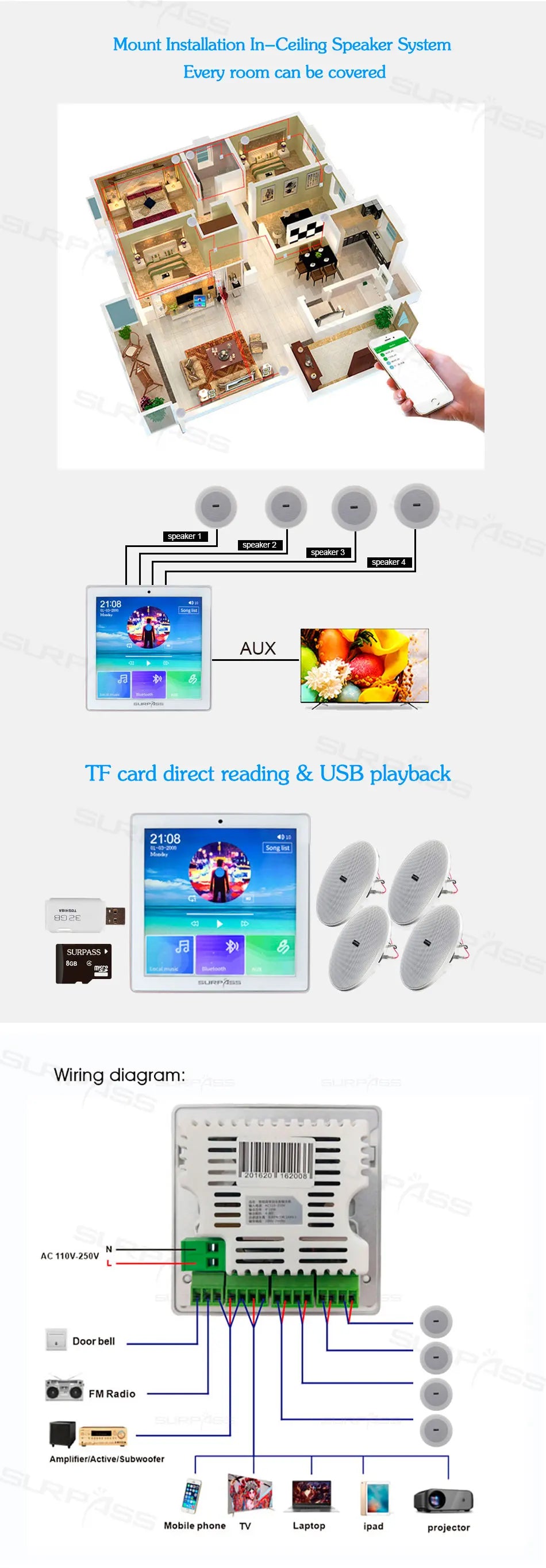

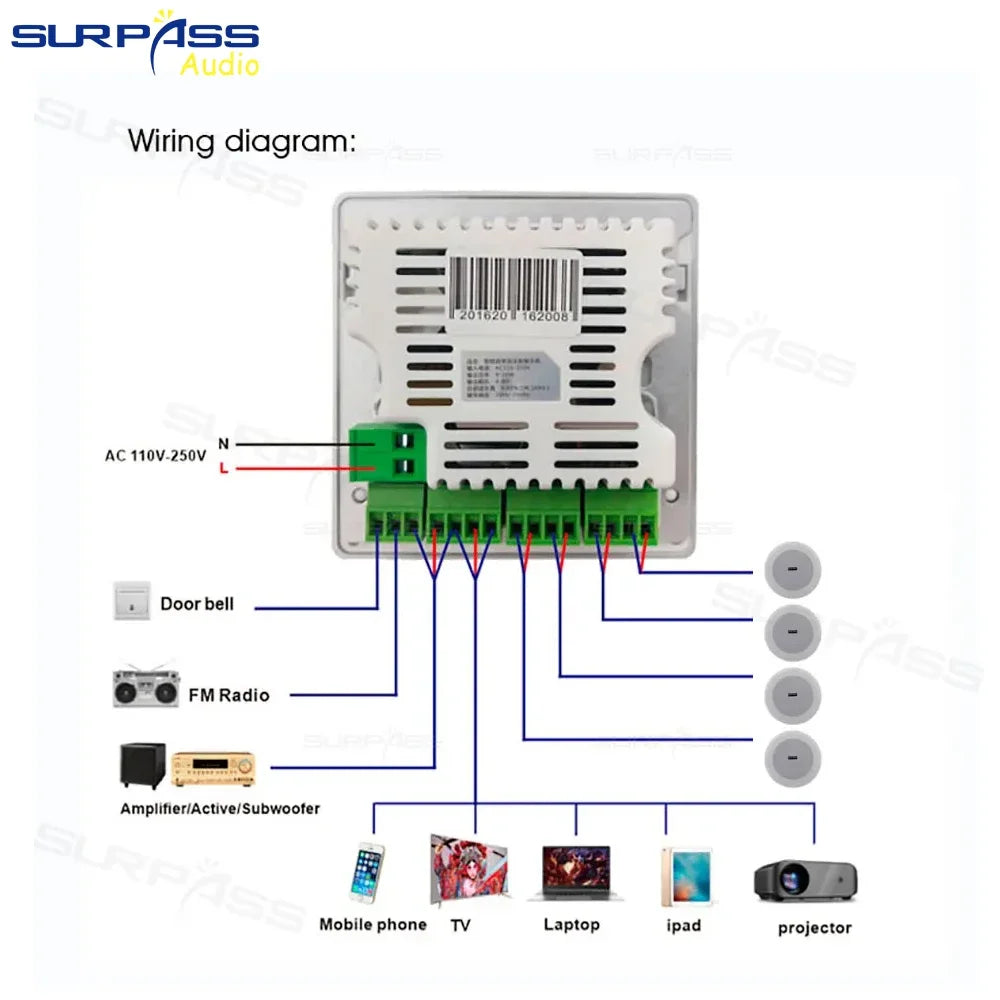

1. Speaker: Speaker wire (200 cores). RVH2X100,RVH2X200 connect to SPK R+ SPK R-.
2. Audio output wire: Audio wire (three core shielded wire: commonly known as microphone wire). RVVP2X0.5, RVVP2X0.75 connect to OUT R +OUT L+GND. Can be connected to other amplifiers.
3. Audio input wire: Audio wire (three core shielded wire: commonly known as microphone wire). RVVP2X0.5, RVVP2X0.75 connect to AUX L+AUX R+GND.
4. Video output: Connect to GND+ATV for video output.

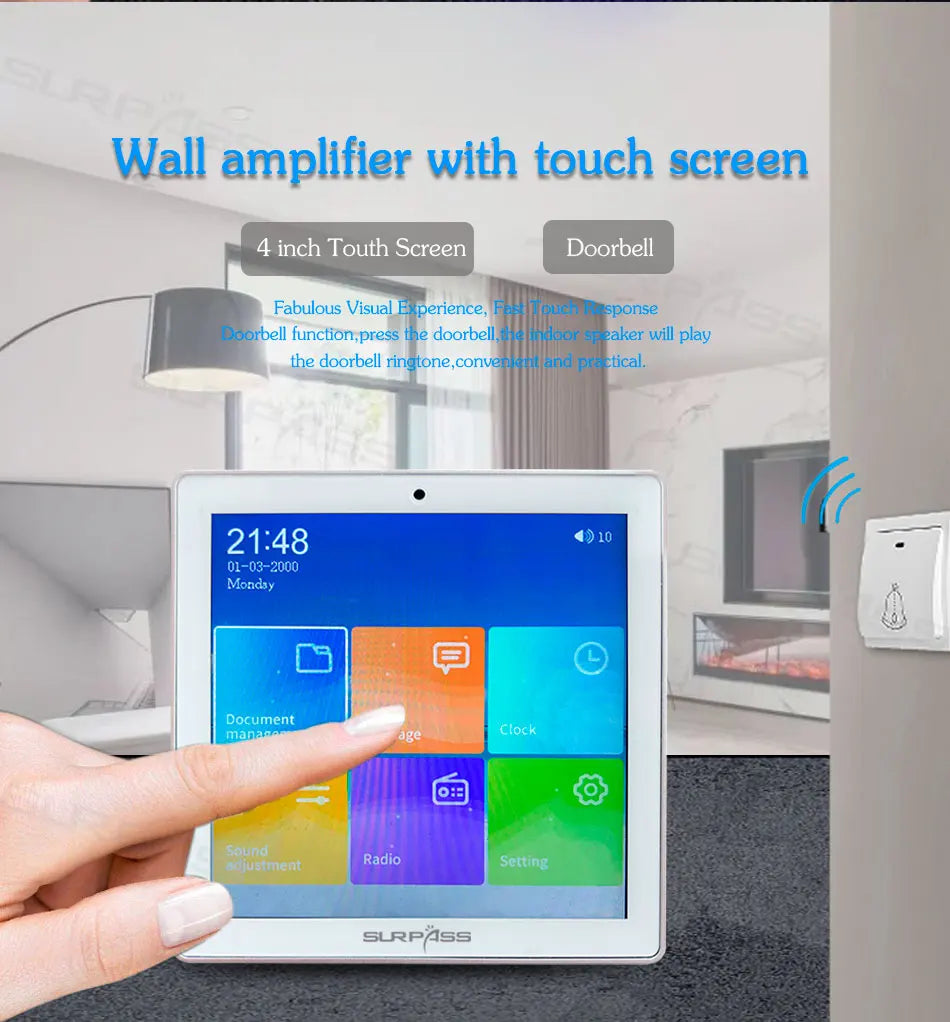

5. Trigger the doorbell: Connect to GND+DB to trigger the doorbell.
6. FM: Radio antenna
7.USB: External OTG USB, can read U disk with adapter.
8.TF card: Read TF card interface.
9.Power switch: long press for 2 seconds to turn on, long press for 2 seconds to turn off, short press for lock screen / unlock.
10.Volume down key
11.Volume up key
12.Microphone
13.Power supply terminal: Connect AC110V-240V power supply.
